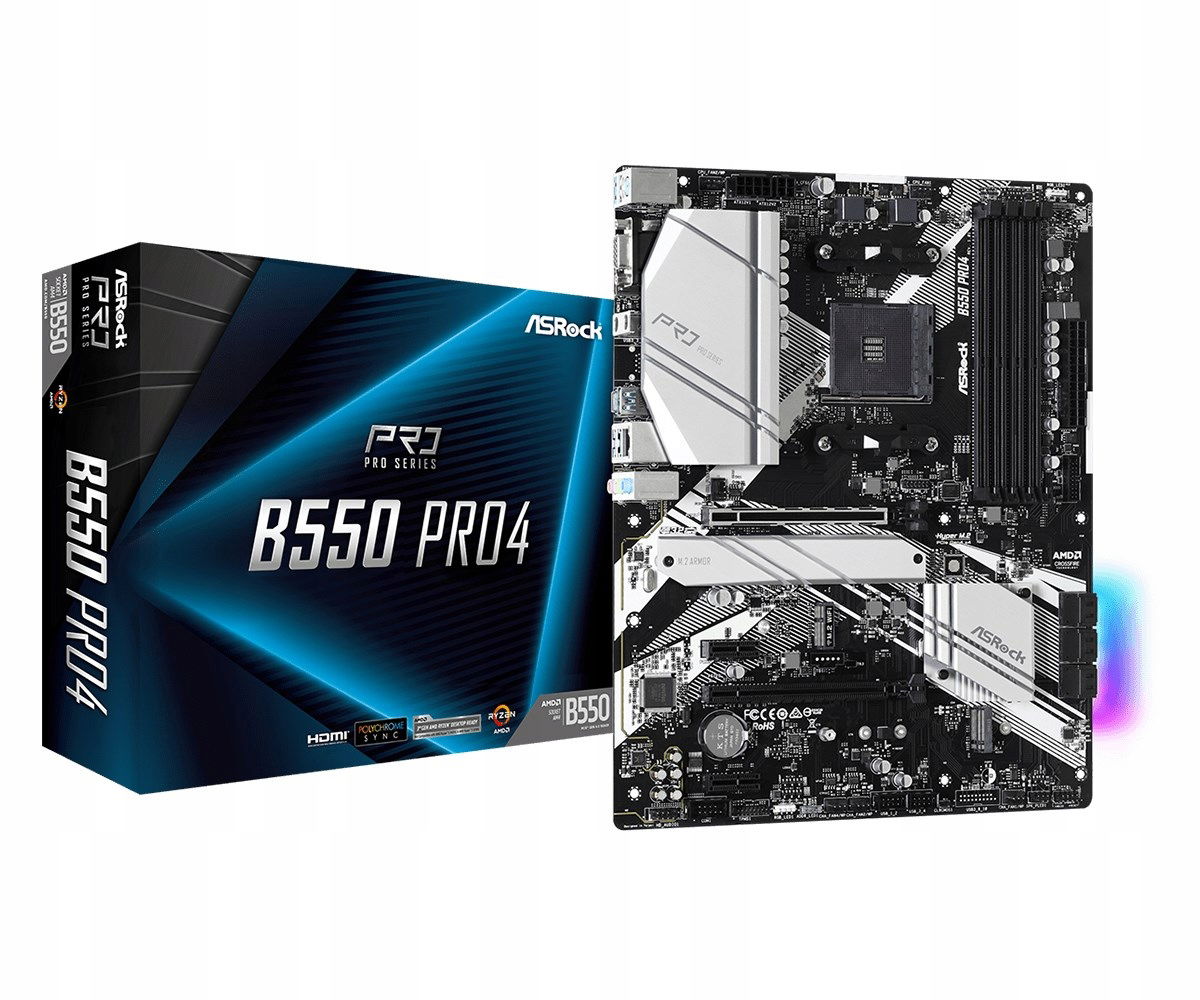

Základná doska Asrock B550 PRO4

Kód E: 4710483931482

• Rozhranie: Áno
• Príslušenstvo v balení: - Quick Installation Guide, Podpora CD, I/O Shield, - 2 x SATA Data Cables, - 3 x Screws pre M.2 Sockets, - 1 x Standoff pre M.2 Socket
• Rozširujúce sloty: 1, 2
• Chipset: AMD B550
• Vstupné / výstupné konektory: 1, 3, 5
• RAID: SATA 0, 1, 10
• Max. rýchlosť zápisu: 0.01282
• Typ pamäte: DDR4
• Frekvencia: 2133/2400/2667/2933/3200/3466/3600/3733/3800/3866/4000/4133/4200/4266/4333/4400/4466/40343/4736
• Množstvo v balení: 10
• Pamäťové sloty: 4
• Elektrická zásuvka: SAM4
• Integrované audio: Áno
• Integrované video: V závislosti od procesora
• Integrovaná LAN: Gigabitová

B550 Pro4

• Podpora 3rd Gen AMD AM4 Ryzen™ / Future AMD Ryzen™ Processors
• 8 Power Phase Design, Digi Power
• Podpora DDR4 4733+ (OC)
• 1 PCIe 4.0 x16, 1 PCIe 3.0 x16, 2 PCIe 3.0 x1, 1 M.2 Key E pre WiFi
• Graphics Output Options: HDMI, D-Sub
• AMD CrossFireX™
• 7.1 CH HD Audio (Realtek ALC1200 Audio Codec), Nahimic Audio
• 6 SATA3, 1 Hyper M.2 (PCIe Gen4 x4), 1 M.2 (PCIe Gen3 x2 & SATA3)
• 2 USB 3.2 Gen2 (Rear Type A+C), 6 USB 3.2 Gen1 (2 Front, 4 Rear)
• Gigabitová LAN

TECHNICKÉ ŠPECIFIKÁCIE

Unique FeatureASRock USB 3.2 Gen2

- ASRock USB 3.2 Gen2 Type-A Port (10 Gb/s)

- ASRock USB 3.2 Gen2 Type-C Port (10 Gb/s)

ASRock Super Alloy

- XXL Aluminum Alloy Heatsink

- Premium 50A Power Choke

- Sapphire Black PCB

- Vysoko density sklo Fabric PCB

- 2oz Copper PCB

ASRock Steel Slot Gen4

ASRock Full Coverage M.2 Heatsink

ASRock Hyper M.2 (PCIe Gen4x4)

ASRock POST Stav Checker (PSC)

ASRock Full Spike Protection (pre USB, Audio, LAN porty)

ASRock Live Update & APP Shop

CPU – Podpora 3rd Gen AMD AM4 Ryzen™ / future AMD Ryzen™ Processors*

- Digi Power design

- 8 Power Phase dizajn

Chipset - AMD B550Memory - Dual Channel DDR4 Memory Technology

- 4 x DDR4 DIMM sloty

- CPU AMD Ryzen (Matisse) podporujú DDR4 4533+ (OC) / 4466 (OC) / 4400 (OC) / 4333 (OC) / 4266 (OC) / 4200 (OC) / 4133 (OC) / 4000 (OC) / 3866 (OC) / 3800 (OC) / 3733 (OC) / 3600 (OC) / 3466 (OC) / 3200 / 2933 / 2667 / 2400 / 2133 ECC a non-ECC, pamäť bez vyrovnávacej pamäte*

- APU AMD Ryzen podporujú DDR4 4733+ (OC) / 4666 (OC) / 4600 (OC) / 4533 (OC) / 4466 (OC) / 4400 (OC) / 4333 (OC) / 4266 (OC) / 4200 ( OC) / 4133 (OC) / 4000 (OC) / 3866 (OC) / 3800 (OC) / 3733 (OC) / 3600 (OC) / 3466 (OC) / 3200 / 2933 / 2667 / 2400 / 2133 ECC -ECC, pamäť bez vyrovnávacej pamäte*

- Max. capacity of pamäťový systém: 128 GB*

- Podpora Extreme Memory Profile (XMP) pamäťových modulov

- 15µ Gold Contact in DIMM Slots

Grafika – integrovaná grafická karta AMD Radeon Vega v procesore APU Ryzen*

- DirectX 12, Pixel Shader 5.0

- Zdieľaná pamäť 2 GB. Max Zdieľané pamäťové podporuné zariadenia s kapacitou 16 GB. **

- Dual graphics output: podpora HDMI a D-Sub ports by independent display controllers

- Podpora HDMI 2.1 s max. resolution up to 4K x 2K (4096x2160) @ 60Hz

- Podpora D-Sub s max. resolution up to 1920x1200 @ 60Hz

- Podpora Auto Lip Sync, Deep Color (12bpc), xvYCC a HBR (High Bit Rate Audio) s portom HDMI 2.1 (kompliant HDMI monitor je required)

- Podpora HDR (High Dynamic Range) s HDMI 2.1

- Podpora HDCP 2.3 s portom HDMI 2.1

- Podpora 4K Ultra HD (UHD) playback s portom HDMI 2.1

- Podpora Microsoft PlayReady

Sloty

Procesory AMD Ryzen (Matisse)

- 2 x PCI Express x16 Slots (PCIE1: Gen4x16 mode; PCIE3: Gen3 x4 mode)*

APU AMD Ryzen

- 2 x PCI Express x16 Slots (PCIE1: Gen3x16 mode; PCIE3: Gen3 x4 mode)*

- 2 x PCI Express 3.0 x1 Slots

- Podpora AMD Quad CrossFireX™ a CrossFireX™

- 1 x M.2 Socket (Key E), podpora typu 2230 WiFi/BT modul

*Podpora NVMe SSD as boot diskov

Skladovanie

- 6 x SATA3 6.0 Gb/s Connectors, podpora RAID (RAID 0, RAID 1 a RAID 10), NCQ, AHCI a Hot Plug*

- 1 x Hyper M.2 Socket (M2_1), podpora M Key type 2260/2280/22110 M.2 PCI Express module up to Gen4x4 (64 Gb/s) (with Matisse) alebo Gen3x4 (32 Gb/s)**

- 1 x M.2 Socket (M2_3), podpora M Key type 2242/2260/2280 M.2 SATA3 6.0 Gb/s module and M.2 PCI Express module up to Gen3 x2 (16 Gb/s)**

*M2_3 and SATA3_5_6 share lanes. If either one of them je in use, the other one will be disabled.

**Podpora NVMe SSD as boot diskov

Podporuje sadu ASRock U.2

LAN - PCIE x1 Gigabit LAN 10/100/1000 Mb/s

- Realtek RTL8111H

- Podpora Wake-On-LAN

- Podpora osvetlenia/ESD ochrany

- Podpora Energy Efficient Ethernet 802.3az

- Podpora PXE

Konektor

- 1 x COM Port Header

- 1 x SPI TPM Header

- 1 x LED a Speaker Header

- 2 x RGB LED Headers*

- 2 x Addressable LED Headers**

- 1 x CPU Fan Connector (4-pin)***

- 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)

- 4 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)****

- 1 x 24 pin ATX Power Connector

- 1 x 8 pin 12V Power Connector

- 1 x 4 pin 12V Power Connector

- 1 x Front Panel Audio Connector

- 2 x USB 2.0 Headers (Podpora 4 USB 2.0 portov) (Podpora ESD Protection)

- 1 x USB 3.2 Gen1 Header (Podpora 2 USB 3.2 Gen1 portov) (Podpora ESD Protection)

*Podpora v total up to 12V/3A, 36W LED Strip

**Podpora v total up to 5V/3A, 15W LED Strip

*** The CPU Fan Connector podpora pre CPU fan maximum 1A (12W) fan power.

****The Chassis/Water Pump Fan supports the vodní cooler fan max 2A (24W) fan power.

CPU_FAN2/WP, CHA_FAN1/WP, CHA_FAN2/WP, CHA_FAN3/WP and CHA_FAN4/WP can auto detect if 3-pin or 4-pin fan is in use.

Audio – 7.1 CH HD Audio s úplnou ochranou (Realtek ALC1200 Audio Codec)

- Podpora Premium Blu-ray Audio

- Podpora Surge Protection

- PCB Isolate Shielding

- Individuálne PCB Layers for R/L Audio Channel

- Nahimic Audio

Rear I/O panel – Antenna Bracket

- 1 x PS/2 Mouse/Keyboardový port

- 1 x D-Sub Port

- 1 x HDMI port

- 1 x USB 3.2 Gen2 Type-A Port (10 Gb/s) (Podpora ESD Protection)

- 1 x USB 3.2 Gen2 Type-C Port (10 Gb/s) (Podpora ESD Protection)

- 4 x USB 3.2 Gen1 Ports (Supports ESD Protection)

- 1 x RJ-45 LAN port s LED (ACT/LINK LED and SPEED LED)

- HD Audio Jacks: Line in / Front Speaker / Microphone

Software a UEFI

softvér

- ASRock Motherboard Utility (A-Tuning)

- ASRock Polychrome SYNC

- ASRock XFast LAN

UEFI

- ASRock Full HD UEFI

- ASRock Instant Flash

*Súčasné utilities can be downloaded from ASRock Live Update & APP Shop.

Podpora CD – Drivers, Utilities, AntiVirus Software (Trial Version), Google Chrome Browser a ToolbarBIOS – 256Mb AMI UEFI Legal BIOS s GUI s podporou

- Podpora „Plug and Play“

- ACPI 5.1 compliance wake up eventy

- Podpora pre jumperfree

- Podpora SMBIOS 2.3

- CPU, CPU VDDCR_SOC, DRAM, VPPM, 1.05V_PROM_S5, 2.5V_PROM, +1.8VSB, VDDP Voltage Multi-adjustment

Príslušenstvo – Quick Installation Guide, Podpora CD, I/O Shield

- 2 x SATA Data Cables

- 3 x Screws pre M.2 Sockets

- 1 x Standoff pre M.2 Socket

Hardware Monitor – Temperature Sensing: CPU, CPU/Water Pump, Chassis/Water Pump Fans

- Fan Tachometer: CPU, CPU/Water Pump, Chassis/Water Pump Fans

- Quiet Fan (Auto adjust chassis fan speed by CPU teplota): CPU, CPU/Water Pump, Chassis/Water Pump Fans

- Fan Multi-Speed Control: CPU, CPU/Water Pump, Chassis/Water Pump Fans

- Voltage monitorovanie: +12V, +5V, +3.3V, CPU Vcore, CPU VDDCR_SOC, DRAM, VPPM, 1.05V_PROM_S5, +1.8V, VDDP

Operating System - Microsoft Windows 10 64-bitForm Factor - ATX Form Factor: 12.0-in x 9.6-in, 30.5 cm x 24.4 cm

- Solid Capacitor design

- 2oz Copper PCB

Certifikácia – FCC, CE

- ErP/EuP ready (ErP/EuP ready power supply is required)
